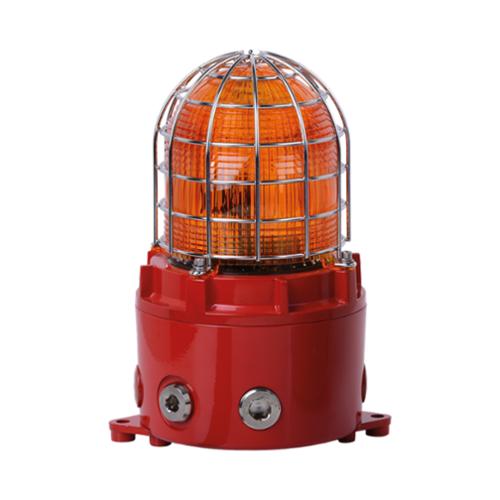

Strobe Xenon 5J - ATEX/IECEx/UL
D1xB2X21
This new beacon generation offers optimal visibility thanks to the fresnel effect of the cap and a very high candela power
Plus pointsSIL1, SIL2 Route 2H
SIL 2 Route 1H in option (24 Vdc only)
Corrosion proof LM6 marine grade aluminium
Swapeable optical lens
Five cable enries
Protection grid included
Voir Plus
-
Effective Range in Joules
-
Zones
-
Certifications
-
Certifications
-
Ingress Protection
-
Material
Availability :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
D1xB2X21
Strobe Xenon 5J - ATEX/IECEx/UL
Authorisation(s) and certification(s)
Unfold CloseATEX / IECEx
II 2G Ex db IIC T4 Gb Ta -55°C to +80°C (AC: +70°C)
II 2G Ex db IIC T5 Gb Ta -55°C to +75°C (AC: +50°C)
II 2G Ex db IIC T6 Gb Ta -55°C to +60°C (DC only)
II 2D Ex tb IIIC T104°C Db Ta -55°C to +80°C (AC: T116°C+70°C)
Technical characteristics
Unfold Close| Product description : | Strobe Xenon 5J - ATEX/IECEx/UL |
| Functions | Flash |
| Lighting source | Xenon |
| Effective Range in Joules | 21 Joule |
| Effective Range in Candelas | 1250.66 Candela |
| Puissance lumineuse en Cd calculé | 1050 Candela |
| Flash Rate | 1 Hz - 1.3 Hz - 1.5 Hz - Double Flash |
| Certifications | SIL2 |
| Certifications | UL |
| Ingress Protection | IP66 / IP67 |
| Protection Grid | Included |
| Zones | Zones 1, 2, 21, 22 |
| Relative Humidity | 95% at 20°C |
| Cable entries | 2 x M20 + 3 x 3/4NPT |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 2.500 Square Millimeter |
| Height | 252.340 Millimeter |
| Diameter | 150.000 Millimeter |
| Weight | 3.2 Kg |
| Material | Aluminium LM6 |
| Housing Material | Marine aluminum LM6 |
| Optical Materials | Borosilicate glass |
| Fixing mounting | Mounting brackets |
| Mounting | Surface mounting |
| Wall mounted | Yes |
| Available Lens Colours | Clear, Amber, Red, Blue, Yellow, Green, Magenta |
| Colour (material) | Red |
| Tolerance | 20-28 VDC, 42-54 VDC, 110-120 VAC, 220-240 VAC |
| Voltage - Current Type | VDC, VAC |
| Voltage | 24, 48, 115, 230 |
| Nominal consumption | 1130 mA, 530 mA, 500 mA, 195 mA |
