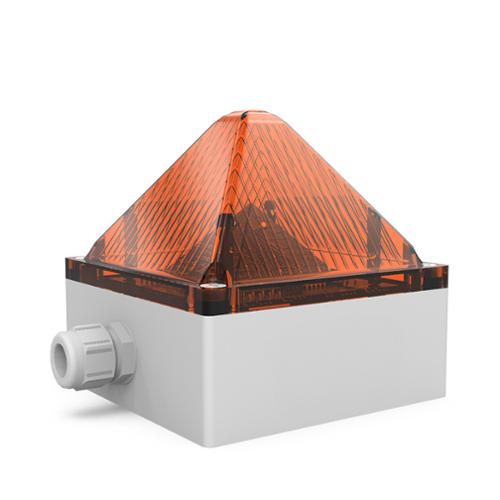

SILcertified 10JQuadro strobe light

QUADROF12SIL2

This Weatherproof 10 J strobe light complies with the SIL2 norm and is perfectly adapted to hazard signalling needs in severe industrial environments.

Plus points

Reliable and SIL2 compliant
Highly visible strobe light (10 Joules / 118 cd)
Highly resistant light (IK08)
Moisture proof IP66 & 67
Self-monitored light
Class II electrical insulation

Voir Plus
  • Effective Range in Joules
  • Certifications
  • Ingress Protection
  • Impact Resistance
Availability :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
Selection criteria

QUADROF12SIL2

SILcertified 10JQuadro strobe light

Authorisation(s) and certification(s)

Unfold Close

Technical characteristics

Unfold Close
Product description : SILcertified 10JQuadro strobe light
Functions Flash
Lighting source Xenon
Effective Range in Joules 10 Joule
Effective Range in Candelas 118 Candela
Flash Rate 1 Hz (60 Flashs / min)
Average life time of the flash 70% efficiency after 8 million Flashes
Certifications SIL2
Ingress Protection IP66 / IP67
Impact Resistance IK08
Min Operating Temperature -25 Degree Celsius
Max Operating Temperature 55 Degree Celsius
Min Storage Temperature -40 Degree Celsius
Max Storage Temperature 70 Degree Celsius
Relative Humidity 100% at 20°C
Cable entries 2 x M20 on the underside and 2 x M20 / M32 on the sides
Min.Cable size 0.080 Square Millimeter
Max. Cable size 2.500 Square Millimeter
Power Factor 100 %
Electric Isolation Class II
Weight 0.6 Kg
Housing Material Polycarbonate
Optical Materials Polycarbonate
Available Lens Colours Red, Amber, Yellow, Green, Blue, Clear
Tolerance 18-30 VDC, 195-253 VAC
Voltage - Current Type VDC, VAC
Voltage 24, 230
Nominal consumption 700 mA, 250 mA
