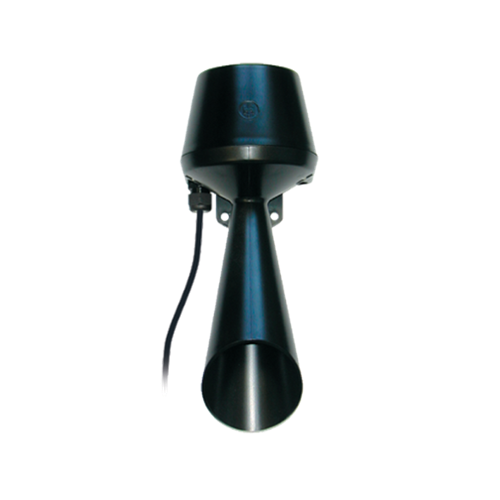

MHP 11 - 108dB horn with CG M20 IP54
MHP11
Electromagnetic signalling system
Plus pointsHigh sound power level 108 dB at 1 m
Very compact design
Voir Plus
-
Output in dB
-
Zones
-
Ingress Protection
-
Colour (material)
-
Number of Tones
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
MHP11048T5
MHP 11 - 108dB horn 48Vdc with CG M20
Authorisation(s) and certification(s)
Unfold CloseII 2 G Ex d IIC T4 Ta. -60°C à +50°C
II 2 G Ex d IIC T3 Ta. -60°C à +70°C
II 2 G Ex d IIB T6 Ta. -60°C à +50°C
II 2 G Ex d IIB T5 Ta. -60°C à +65°C
II 2 G Ex d IIB T4 Ta. -60°C à +70°C
Technical characteristics
Unfold Close| Product description : | MHP 11 - 108dB horn 48Vdc with CG M20 |
| Output in dB | 108 Decibel |
| Number of Tones | 1 |
| Ingress Protection | IP54 |
| Min Operating Temperature | -20 Degree Celsius |
| Max Operating Temperature | 60 Degree Celsius |
| Min Storage Temperature | -60 Degree Celsius |
| Max Storage Temperature | 80 Degree Celsius |
| Zones | Zones 1, 2 |
| Cable entries | 1 x M20 (Cable gland included) |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 2.500 Square Millimeter |
| Power Factor | 75% |
| Height | 345.000 Millimeter |
| Diameter | 133.000 Millimeter |
| Depth / Thickness | 140.000 Millimeter |
| Housing Material | PC |
| Fixing mounting | Wall mounting |
| Colour (material) | Black |
| Voltage - Current Type | VDC |
| Voltage | 48 |
| Tolerance | +10% / -15% VDC |
| Nominal consumption | 240 mA |
