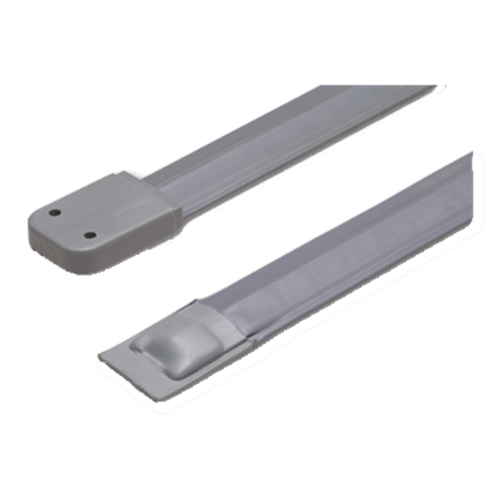

Medium-sensitivity contact strip

131A

This medium-sensitivity contact strip is used for automatic or self-guided carts.
COMPLIES WITH MACHINERY DIRECTIVE 2006/42/EC WHEN USED WITH OUR PRSU4 RELAY

Plus points

Custom-made
Can be installed in curves
Activation by hand, foot or mechanically
Fixed by adhesive or integrated in an aluminium rail

Voir Plus
  • Max Trigger force in N
  • Max Trigger force in Kg
  • Radius of Curvature in mm
  • Ingress Protection
  • Material
  • Level of safety relays
  • Breaking capacity
Availability :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
Selection criteria

131A

Medium-sensitivity contact strip

Authorisation(s) and certification(s)

Unfold Close

Technical characteristics

Unfold Close
Product description : Medium-sensitivity contact strip
Max Trigger force in N 60 Newton
Max Trigger force in Kg 6 Kilogram
Sensitivity Average
Radius of Curvature in mm 15 Millimeter
Activation Mode Hand / Foot / Mechanical
Breaking capacity 1 A
Ingress Protection IP65
Min Operating Temperature -20 Degree Celsius
Max Operating Temperature 50 Degree Celsius
Voltage - Current Type VDC
Voltage 30
Cable Length 450 mm
Level of safety relays Category 3
Weight per meter 0.075 Kg/Meter
Width 19.000 Millimeter
Depth / Thickness 4.700 Millimeter
Material PVC
Fixing mounting Rail or glue
