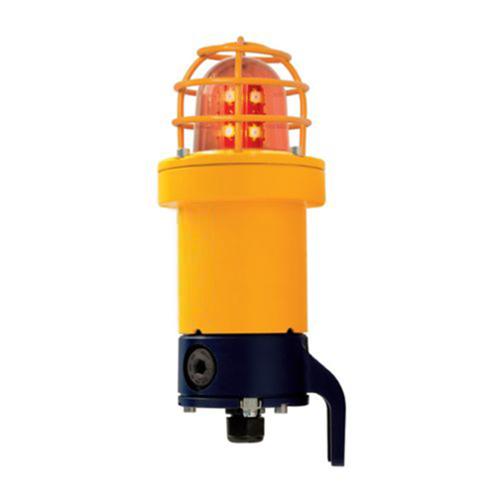

Compact ATEX LED light
DSLB20LED
DSLB20 Strobe light with Exe cable chamber to facilitate cabling.
Plus pointsContinuous operation
Exe Connection chamber
Compact design
Protection class IP66 and 67
Voir Plus
-
Zones
-
Ingress Protection
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
DSLB20024LED2
Compact ATEX LED light
Authorisation(s) and certification(s)
Unfold CloseII 2 G Ex d e IIC T5, T6 Gb
II 2 D Ex tb IIlC T95 °C, T80 °C Db
Technical characteristics
Unfold Close| Product description : | Compact ATEX LED light |
| Functions | Blinking, Permanent, Flash, Rotating |
| Lighting source | LED |
| Ingress Protection | IP66 / IP67 |
| Min Operating Temperature | -55 Degree Celsius |
| Max Operating Temperature | 55 Degree Celsius |
| Min Storage Temperature | -60 Degree Celsius |
| Max Storage Temperature | 80 Degree Celsius |
| Zones | Zones 1, 2, 21, 22 |
| Relative Humidity | 90% at 20°C |
| Cable entries | 2 x M20 (Plugs and cable glands supplied) |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 2.500 Square Millimeter |
| Power Factor | 100 % |
| Height | 243.000 Millimeter |
| Diameter | 110.000 Millimeter |
| Weight | 2 Kg |
| Housing Material | Aluminium |
| Optical Materials | Glass |
| Fixing mounting | Fixing on adjustable bracket |
| Mounting | Surface mounting |
| Wall mounted | Yes |
| Ceiling mounted | No |
| Available Lens Colours | Amber |
| Voltage - Current Type | VDC |
| Voltage | 24 |
| Tolerance | +/- 10% VDC |
| Nominal consumption | 500 mA |
