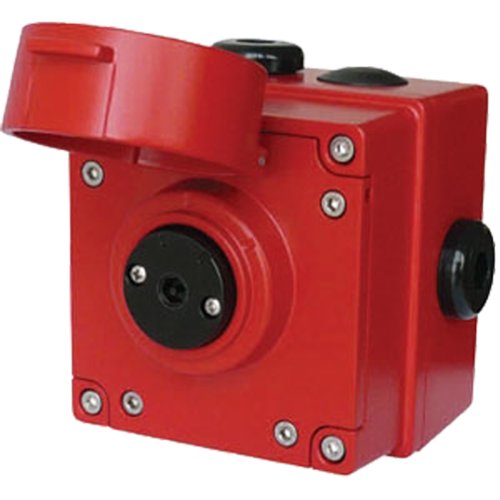

ATEX manual trip switch with key
BEXCP3BPTPush button protected by a flap to prevent accidental activation.
Plus pointsMarine grade aluminium housing, corrosion-resistant, copper-free: LM6
The rear part of the housing can be rotated so that the cable entries are on the desired side
Voir Plus
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
Selection criteria |
|
BEXCP3BPT
ATEX manual trip switch with key
Authorisation(s) and certification(s)
Unfold CloseII 2G Ex e d mb IIC T4 Gb -40°C à +50°C
II 2D Ex t IIIC T70°C Db -40°C à +50°C
Technical characteristics
Unfold CloseProduct description : | ATEX manual trip switch with key |
Min Operating Temperature | -40 Degree Celsius |
Max Operating Temperature | 55 Degree Celsius |
Zones | Zones 1, 2, 21, 22 |
Cable entries | 3 x M20 |
Min.Cable size | 0.500 Square Millimeter |
Max. Cable size | 4.000 Square Millimeter |
Width | 95.000 Millimeter |
Height | 98.000 Millimeter |
Depth / Thickness | 101.000 Millimeter |
Weight | 0.8 Kg |
Housing Material | Marine aluminum LM6 |
Fixing mounting | Wall mounting |
Wall mounted | Yes |
Cord of the Handset | Stainless steel |
