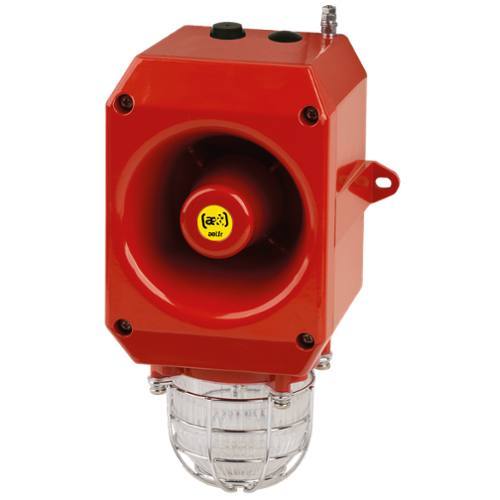

5J Xenon/112dB siren combi cast alu
DLX112
Electronic siren (112 dB at 1 m ) includes sound NFS 32001, with 5 J LED strobe light and protection grid (1 Hz, 60 flashes / min).
Plus pointsIncreased protection for electronic products.
IP66 offers excellent protection against the weather
Protection grid
32 sounds available including NFS 32001
Voir Plus
-
Output in dB
-
Effective Range in Joules
-
Ingress Protection
-
Number of Tones
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
DLX1122302
Cast alu. 112dB strobe light combi 230Vac Amber 5J strobe IP66
Authorisation(s) and certification(s)
Unfold CloseCE
EN 54-3
Technical characteristics
Unfold Close| Product description : | Cast alu. 112dB strobe light combi 230Vac Amber 5J strobe IP66 |
| Functions | Flash |
| Lighting source | Xenon |
| Effective Range in Joules | 5 Joule |
| Effective Range in Candelas | 250 Candela |
| Flash Rate | 1 Hz (60 Flashs / min) |
| Average life time of the flash | 70% efficiency after 8 million Flashes |
| Output in dB | 112 Decibel |
| Number of Tones | 45 |
| Sound Adjustment | Oui |
| Choice of Tones | Yes |
| Acoustic signal type | Programmable tone |
| Ingress Protection | IP66 |
| Min Operating Temperature | -25 Degree Celsius |
| Max Operating Temperature | 55 Degree Celsius |
| Min Storage Temperature | -40 Degree Celsius |
| Max Storage Temperature | 70 Degree Celsius |
| Protection Grid | Incluse |
| Relative Humidity | 90% at 20°C |
| Cable entries | 2 x M20 |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 1.500 Square Millimeter |
| Width | 130.000 Millimeter |
| Height | 267.500 Millimeter |
| Depth / Thickness | 125.000 Millimeter |
| Housing Material | Aluminium |
| Available Lens Colours | Amber |
| Voltage - Current Type | VAC |
| Voltage | 230 |
| Tolerance | +/- 10% VAC |
| Nominal consumption | 95 mA |
| Weight | 3.1 Kg |
