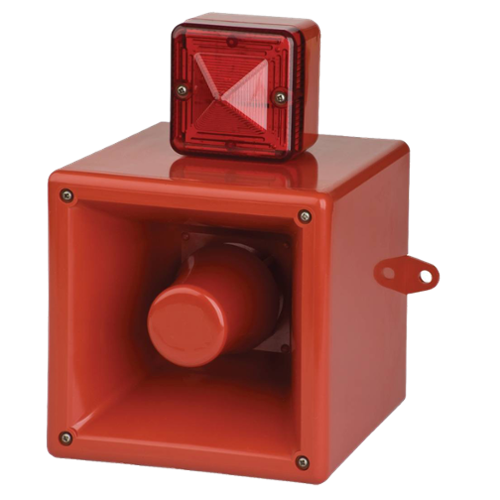

126dB voice /sound 5J strobe combi IP66 4 messages 30 seconds
APELOL20Digital sounder, auto-recordable voice 111 dB (at 1 m) and sound 126 dB (at 1 m).
Can broadcast sounds, including NFS 32001
2 minutes recording time (up to 4x30-sec messages)
Improved sound and message broadcasting quality
Easy to use and record messages
Unlimited message modification
Versatility: sound and message Robust (IP66) broadcaster that can be used in harsh industrial environments
Sound efficiency (300 m @ 1 KHz)
Strobe light intensity: 200 cd
- Output in dB
- Effective Range in Joules
- Certifications
- Ingress Protection
- Colour (material)
- Number of remote tones
- Number of Tones
Selection criteria |
|
APELOL202304
126dB 5J recordable voice diffuser
Authorisation(s) and certification(s)
Unfold CloseCE
Technical characteristics
Unfold CloseProduct description : | 126dB 5J recordable voice diffuser |
Functions | Flash |
Lighting source | Xenon |
Effective Range in Joules | 5 Joule |
Effective Range in Candelas | 200 Candela |
Flash Rate | 1 Hz (60 Flashs / min) |
Average life time of the flash | 70% efficiency after 8 million Flashes |
Output in dB | 111 Decibel |
Number of Tones | 45 |
Number/duration of messages | 4 x 30 seconds or 1 x 2 minutes |
Number of remote tones | 4 |
Choice of Tones | Yes |
Acoustic signal type | Programmable tone |
Certifications | UL |
Ingress Protection | IP66 |
Min Operating Temperature | -25 Degree Celsius |
Max Operating Temperature | 55 Degree Celsius |
Min Storage Temperature | -40 Degree Celsius |
Max Storage Temperature | 70 Degree Celsius |
Relative Humidity | 90% at 20°C |
Cable entries | 2 x M20 |
Min.Cable size | 0.500 Square Millimeter |
Max. Cable size | 2.500 Square Millimeter |
Power Factor | 100 % |
Width | 190.000 Millimeter |
Height | 275.900 Millimeter |
Depth / Thickness | 191.500 Millimeter |
Housing Material | Self-extinguishing ABS |
Colour (material) | Red |
Available Lens Colours | Blue |
Voltage - Current Type | VAC |
Voltage | 230 |
Tolerance | +/- 10% VAC |
Nominal consumption | 552 mA |
Weight | 2.9 Kg |
