108dB T5 MHG horn with CG M20 IP66
MHG11T5
Electromagnetic signalling system
Plus pointsHigh sound power level 108 dB at 1 m
Very compact design
With T5 temperature class
Voir Plus
-
Output in dB
-
Zones
-
Ingress Protection
-
Number of Tones
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
MHG11230T5

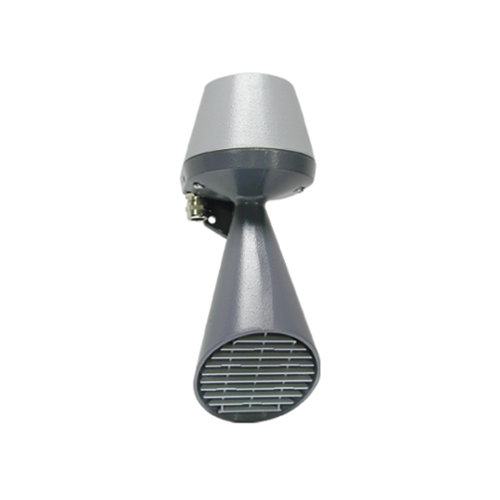

108dB T5 MHG horn FOR TELEPHONE
Authorisation(s) and certification(s)
Unfold CloseII 2 G Ex emb II T5 -55°C A +50°C
II 2 G Ex emb II T5 -55°C A +60°C
II 2 D Ex tD A21 IP66 T90°C
PTB 07 ATEX 2039 X
Technical characteristics
Unfold Close| Product description : | 108dB T5 MHG horn FOR TELEPHONE |
| Output in dB | 108 Decibel |
| Number of Tones | 1 |
| Ingress Protection | IP66 |
| Min Operating Temperature | -55 Degree Celsius |
| Max Operating Temperature | 70 Degree Celsius |
| Min Storage Temperature | -60 Degree Celsius |
| Max Storage Temperature | 80 Degree Celsius |
| Zones | Zones 1, 2, 21, 22 |
| Cable entries | 1 x M20 (Cable gland included) |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 2.500 Square Millimeter |
| Power Factor | 75% |
| Height | 345.000 Millimeter |
| Diameter | 133.000 Millimeter |
| Depth / Thickness | 140.000 Millimeter |
| Housing Material | Aluminium |
| Fixing mounting | Wall mounting |
| Voltage - Current Type | VAC |
| Voltage | 230 |
| Tolerance | +6% / -15% VAC |
| Nominal consumption | 70 mA |
