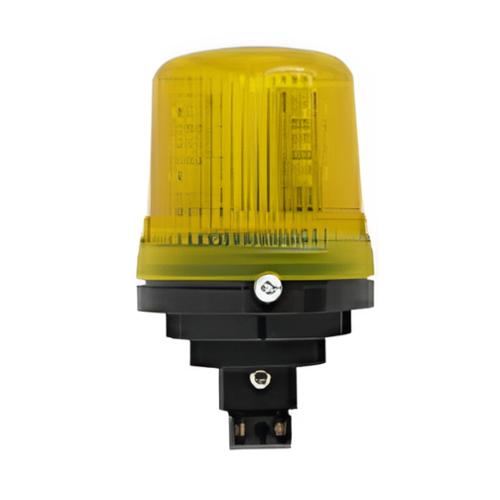

1 J Flush-mount strobe light IP65 65.5xø60mm

O100F

Flush-mount indicator light

Plus points

High protection class (IP65)
Easy installation (removable terminal block) and maintenance (removable cap)
Screwed-in cap closure

Voir Plus
  • Effective Range in Joules
  • Ingress Protection
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
Selection criteria

O100F2305

1 J Flush-mount strobe light 230Vac Yellow 65.5xø60mm IP65

Authorisation(s) and certification(s)

Unfold Close

Technical characteristics

Unfold Close
Product description : 1 J Flush-mount strobe light 230Vac Yellow 65.5xø60mm IP65
Functions Flash
Lighting source Xenon
Effective Range in Joules 1 Joule
Effective Range in Candelas 37 Candela
Flash Rate 0.75 Hz (45 Flashs/mn)
Ingress Protection IP65
Min Operating Temperature -25 Degree Celsius
Max Operating Temperature 50 Degree Celsius
Min Storage Temperature -40 Degree Celsius
Max Storage Temperature 70 Degree Celsius
Relative Humidity 90% at 20°C
Cable entries Connection by removable terminal block
Min.Cable size 0.500 Square Millimeter
Max. Cable size 1.500 Square Millimeter
Power Factor 100 %
Height 65.500 Millimeter
Diameter 60.000 Millimeter
Weight 0.093 Kg
Housing Material High strength polycarbonate
Fixing mounting Recessed into a Ø 37 mm hole
Mounting Recessed
Wall mounted Yes
Ceiling mounted Yes
Available Lens Colours Yellow
Voltage - Current Type VAC
Voltage 230
Tolerance +/- 10% VAC
Nominal consumption 20 mA
