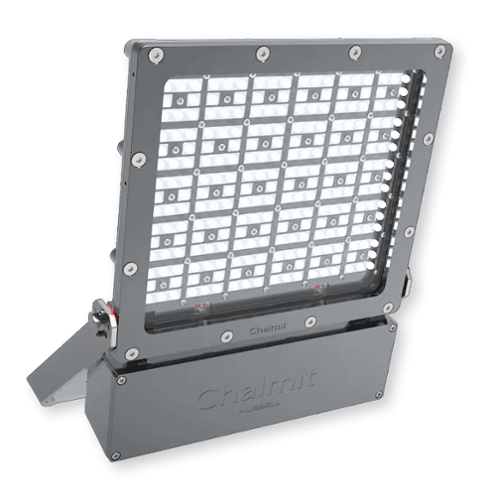

High-power LED spotlight ATEX
EVXB
Evolution X's design is based on extensive customer feedback, it combines high power and long-term maintenance.
It offers a variety of diffuser angles to effectively illuminate all applications in Zone 1, 2, 21 and 22.
the Evolution X is a true successor to the traditional HPS projector
to the traditional high output HID floodlight
- Reduced risk of glare
- Luminous efficacy of 106 lm/W
- Light output of 20k, 30k or 40k lumens
- more than 120,000 hours at 25°C service life
- LED part "sealed for life" and requiring no maintenance
Voir Plus
-
Zones
-
Ingress Protection
-
Material
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
EVXB
High-power LED spotlight ATEX
Authorisation(s) and certification(s)
Unfold CloseII 2 GD
Ex db eb IIB+H2 T4/T5 Gb
Ex db eb IIB T4/T5 Gb
Ex db eb IIC T4/T5 Gb
Ex tb IIIC T100/135°C Db
-55°C ≤ Ta ≤ +40/60°C
Technical characteristics
Unfold Close| Product description : | High-power LED spotlight ATEX |
| Lighting source | LED |
| Ingress Protection | IP66 / IP67 |
| Min Operating Temperature | -55 Degree Celsius |
| Max Operating Temperature | 60 Degree Celsius |
| Zones | Zones 1, 2, 21, 22 |
| Voltage - Current Type | VAC |
| Voltage | 230 |
| Power supply frequency | 50 Hz |
| Tolerance | 110-277 VAC |
| Cable entries | 2 x M20 |
| Max. Cable size | 6.000 Square Millimeter |
| Width | 422.000 Millimeter |
| Height | 515.000 Millimeter |
| Depth / Thickness | 96.000 Millimeter |
| Weight | 17 Kg |
| Material | Aluminium |
| Material of the diffuser | Glass |
| Fixing mounting | Stainless steel mounting bracket (supplied) |
