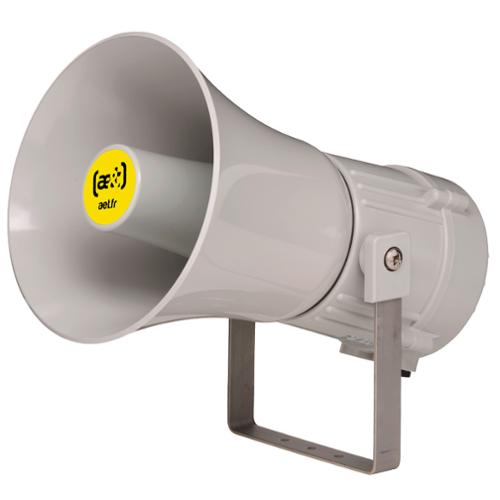

119dB siren with reinforced sealing
TIP121V2
Extremely robust electronic siren specially adapted to severe industrial environment conditions and marine environments
Plus pointsExcellent class of protection IP66 & IP67
64 tones (including NF S32-001)
4 remotely controllable tones
2 cable entries
Double removable terminal blocks
Operating temperature: -40 ° C to + 66 ° C
Low inrush current
Automatic tone synchronization
bracket mounting
Voir Plus
-
Output in dB
-
Ingress Protection
-
Number of remote tones
-
Number of Tones
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
TIP121V2
119dB siren with reinforced sealing
Authorisation(s) and certification(s)
Unfold CloseCE
EAC
Technical characteristics
Unfold Close| Product description : | 119dB siren with reinforced sealing |
| Synchronisation | Yes (in parallel mounting) |
| Output in dB | 123 Decibel |
| Number of Tones | 64 |
| Number of remote tones | 4 |
| Sound Adjustment | Yes by potentiometer |
| Choice of Tones | Yes - By microswitch |
| Acoustic signal type | Programmable tone |
| Ingress Protection | IP66 / IP67 |
| Min Operating Temperature | -40 Degree Celsius |
| Max Operating Temperature | 66 Degree Celsius |
| Min Storage Temperature | -40 Degree Celsius |
| Max Storage Temperature | 70 Degree Celsius |
| Relative Humidity | 95% at 20°C |
| Power supply frequency | 50 / 60 Hz |
| Cable entries | 2 x M20 |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 2.500 Square Millimeter |
| Power Factor | 100 % |
| Length | 323.500 Millimeter |
| Diameter | 220.000 Millimeter |
| Housing Material | ABS UL94 V0 & 5VA FR |
| Fixing mounting | Fixing bracket for 360 ° positioning |
| Colour (material) | Grey, Red |
| Tolerance | 10-60 VDC, 100-240 VAC |
| Voltage - Current Type | VDC, VAC |
| Voltage | 24, 12, 48, 115, 230 |
| Nominal consumption | 440 mA @12Vdc / 888 mA @24Vdc / 453 mA @48Vdc, 340 mA @115Vac / 212 mA @230Vac |
| Weight | 2.75 Kg, 3.25 Kg |
