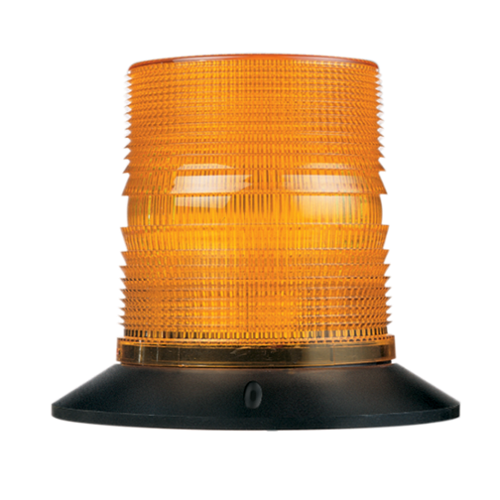

7J strobe light - 2 strobe rates Multidirectional - IP55
PMF2015
Xenon omnidirectional strobe light
14 J burst operation
2 cycles
Burst operation
Highly visible (7J main strobe)
Highly resistant light (IP55)
Voir Plus
-
Effective Range in Joules
-
Ingress Protection
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
PMF20150242
7J strobe light - 2 strobe rates 24Vdc Amber IP55
Authorisation(s) and certification(s)
Unfold CloseCE
EAC
Technical characteristics
Unfold Close| Product description : | 7J strobe light - 2 strobe rates 24Vdc Amber IP55 |
| Functions | Flash |
| Number of Lighting Mode | 2 |
| Lighting source | Xenon |
| Effective Range in Joules | 7 Joule |
| Effective Range in Candelas | 250 Candela |
| Flash Rate | 2 Hz (120 Flashs / min) |
| Average life time of the flash | 70% efficiency after 8 million Flashes |
| Ingress Protection | IP55 |
| Min Operating Temperature | -40 Degree Celsius |
| Max Operating Temperature | 55 Degree Celsius |
| Min Storage Temperature | -40 Degree Celsius |
| Max Storage Temperature | 70 Degree Celsius |
| Relative Humidity | 90% at 20°C |
| Power supply frequency | 50 / 60 Hz |
| Cable entries | 1 x M20 |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 2.500 Square Millimeter |
| Power Factor | 100 % |
| Housing Material | ABS |
| Optical Materials | Polycarbonate |
| Fixing mounting | Flat bottom mounting |
| Mounting | Surface mounting |
| Wall mounted | Yes |
| Ceiling mounted | Yes |
| Available Lens Colours | Amber |
| Voltage - Current Type | VDC |
| Voltage | 24 |
| Tolerance | 18 - 30 VDC |
| Nominal consumption | 650 mA |
| Weight | 0.7 Kg |
