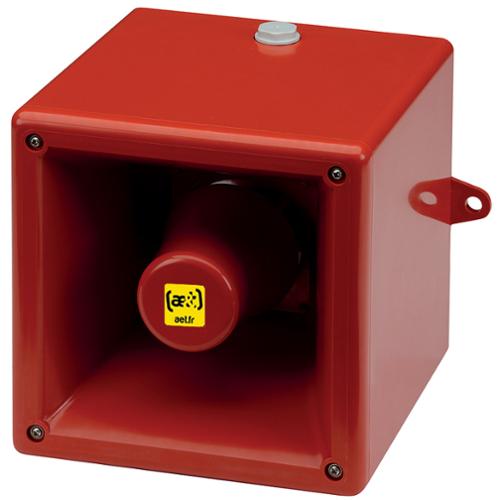

126dB recordable voice diffuser
APELO121
Digital sounder, auto-recordable voice 111 dB (at 1 m) and sound 126 dB (at 1 m). Can broadcast sounds, including NFS 32001.
Plus points2 minutes recording time (up to 4 x 30-sec messages)
Improved sound and message broadcasting quality
Easy to use and record messages
Unlimited modifiable messages
Versatility: sound and message broadcasting - Robust & waterproof (IP66) broadcaster that can be used in harsh industrial environments
Sound efficiency (300 m @ 1 KHz)
45 tones available
Voir Plus
-
Output in dB
-
Certifications
-
Ingress Protection
-
Number of Tones
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
APELO121
126dB recordable voice diffuser
Authorisation(s) and certification(s)
Unfold CloseCE
Technical characteristics
Unfold Close| Product description : | 126dB recordable voice diffuser |
| Output in dB | 126 Decibel |
| Number of Tones | 45 |
| Number/duration of messages | 4 x 30 seconds or 1 x 2 minutes |
| Sound Adjustment | Yes by potentiometer |
| Choice of Tones | Yes |
| Acoustic signal type | Programmable tone |
| Certifications | UL |
| Ingress Protection | IP66 |
| Min Operating Temperature | -25 Degree Celsius |
| Max Operating Temperature | 55 Degree Celsius |
| Min Storage Temperature | -40 Degree Celsius |
| Max Storage Temperature | 70 Degree Celsius |
| Relative Humidity | 90% at 20°C |
| Cable entries | 2 x M20 |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 2.500 Square Millimeter |
| Power Factor | 100 % |
| Width | 190.000 Millimeter |
| Height | 190.000 Millimeter |
| Depth / Thickness | 191.500 Millimeter |
| Housing Material | Self-extinguishing ABS |
| Colour (material) | Red |
| Tolerance | 90-260 VAC, 14-30 VDC |
| Voltage - Current Type | VAC, VDC |
| Voltage | 230, 24 |
| Nominal consumption | 517 mA, 1.51 A |
| Weight | 2.7 Kg, 2.1 Kg |
