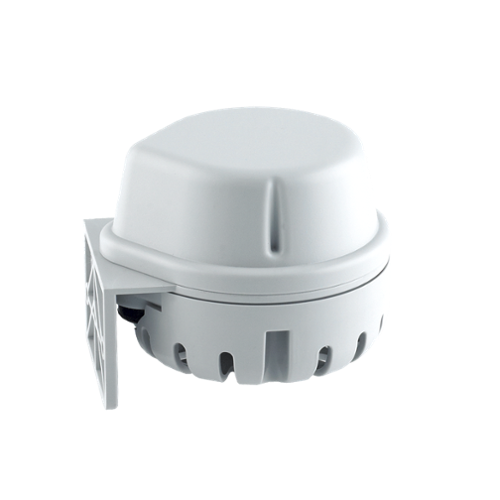

100dB compact buzzer alarm IP65 with mounting bracket
F100B
The electronic F100B buzzer alarm is robust (IP65), powerful (100 dB at 1 m distance) and compact. 3 tones available
Plus points3 tones available
Wide voltage ranges
Volume control - High protection class (IP65)
Voir Plus
-
Output in dB
-
Ingress Protection
-
Colour (material)
-
Material
-
Number of Tones
Availability :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
F100B024
100dB compact buzzer 10 - 30Vdc/ac IP65
Authorisation(s) and certification(s)
Unfold Close
Technical characteristics
Unfold Close| Product description : | 100dB compact buzzer 10 - 30Vdc/ac IP65 |
| Output in dB | 100 Decibel |
| Number of Tones | 3 |
| Sound Adjustment | Yes by potentiometer |
| Choice of Tones | Yes - By switch |
| Acoustic signal type | Programmable tone |
| Ingress Protection | IP65 |
| Min Operating Temperature | -25 Degree Celsius |
| Max Operating Temperature | 50 Degree Celsius |
| Min Storage Temperature | -40 Degree Celsius |
| Max Storage Temperature | 70 Degree Celsius |
| Relative Humidity | 95% at 20°C |
| Cable entries | 1 x 5-7 mm |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 1.500 Square Millimeter |
| Power Factor | 100 % |
| Diameter | 94.200 Millimeter |
| Depth / Thickness | 79.500 Millimeter |
| Weight | 0.118 Kg |
| Material | ABS |
| Colour (material) | Grey |
| Voltage - Current Type | VDC/VAC |
| Voltage | 24 |
| Tolerance | 12-30 VDC/VAC |
| Nominal consumption | 24 mA @24Vcc |
