TUBEO200
Base and tube stand for O200 height 137 mm
Log in to access tariffs
Read on

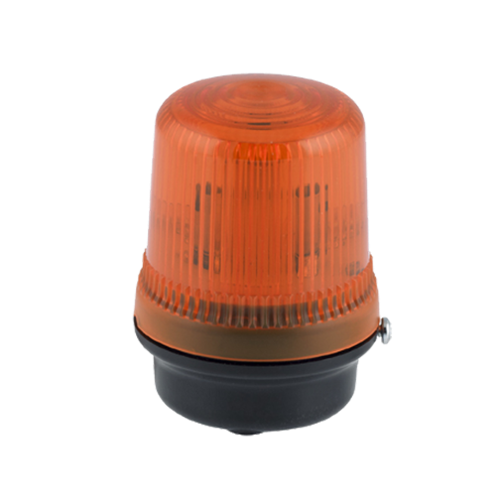

Flat base LED light IP65 80xø60mm
O200L
Compact continuous LED indicator light to be mounted on a flat base Thanks to its mounting accessories, it can be used for many applications.
Plus pointsHigh protection class (IP65)
Easy installation (flat bottom, foot or bracket) and maintenance (removable cap) Screwed-in reinforced cap closure
Voir Plus
-
Ingress Protection
Availability :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
O200L0243
Flat base LED light 24Vdc Red 80xø60mm IP65
Authorisation(s) and certification(s)
Unfold CloseTechnical characteristics
Unfold Close| Product description : | Flat base LED light 24Vdc Red 80xø60mm IP65 |
| Functions | Permanent |
| Lighting source | LED |
| Effective Range in Candelas | 5.5 Candela |
| Ingress Protection | IP65 |
| Min Operating Temperature | -25 Degree Celsius |
| Max Operating Temperature | 50 Degree Celsius |
| Min Storage Temperature | -40 Degree Celsius |
| Max Storage Temperature | 70 Degree Celsius |
| Relative Humidity | 90% at 20°C |
| Cable entries | 1 x Ø 8 mm |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 1.500 Square Millimeter |
| Power Factor | 100 % |
| Height | 80.000 Millimeter |
| Diameter | 60.000 Millimeter |
| Weight | 0.078 Kg |
| Housing Material | High strength polycarbonate |
| Fixing mounting | Mounting on a flat bottom. square or foot |
| Mounting | Surface mounting |
| Available Lens Colours | Red |
| Voltage - Current Type | VDC |
| Voltage | 24 |
| Tolerance | 10-30 VDC |
| Nominal consumption | 80 mA |
