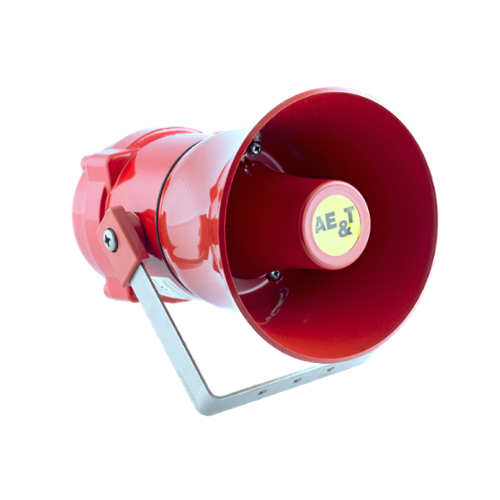

ATEX 25W E loudspeaker IP66/IP67

BEXL25D

Powerful industrial loudspeaker for sound systems
for ATEX industrial sites

Plus points

Corrosion-resistant GRP housing
Horn made of ABS UL94 V0
Powerful sound: 25 Watts RMS
Stainless steel mounting bracket

Voir Plus
  • Output in dB
  • Zones
  • Ingress Protection
  • Output in Watts
  • Material
Availability :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
Selection criteria

BEXL25D16

ATEX 25W d loudspeaker Impedance 16 ohms IP66/IP67

Authorisation(s) and certification(s)

Unfold Close

II 2G Ex d IIB T4 Ta. -50°C à +70°C
II 2G Ex d IIC T4 Ta. -50°C à +55°C
II 2D Ex tb IIIC T100°C Db Ta -50°C à +55°C
II 2D Ex tb IIIC T115°C Db Ta -50°C à +70°C

Technical characteristics

Unfold Close
Product description : ATEX 25W d loudspeaker Impedance 16 ohms IP66/IP67
Output in dB 119 Decibel
Output in Watts 25 Watt
Sound Adjustment Yes by wiring
Sound fequency in Hz 300-8000 Hz
Ingress Protection IP66 / IP67
Zones Zones 1, 2, 21, 22
Cable entries 1 ATEX Plug M20 + 1 unarmoured cable gland ATEX M20
Min.Cable size 0.500 Square Millimeter
Max. Cable size 4.000 Square Millimeter
Power Factor 100 %
Height 326.000 Millimeter
Diameter 220.000 Millimeter
Material Aluminium LM6
Fixing mounting 304 Stainless steel fixing bracket
HP line 16 Ohms
Weight 3.56 Kg
