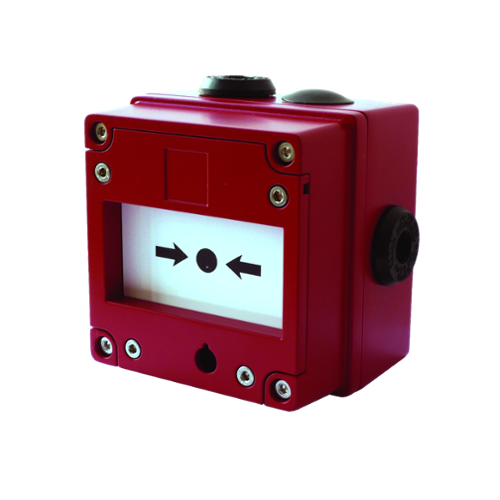

Ex i IP66 glass breakage
IS-CP4ABG
Break glass call point with optional protective flap to prevent accidental activation.
Plus pointsMarine grade aluminium housing, corrosion-resistant, copper-free: LM6
The rear part of the housing can be rotated so that the cable entries are on the desired side
Voir Plus
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
Which flap ?
|
Authorisation(s) and certification(s)
Unfold CloseII 1G Ex ia IIC T6 Ga -40°C à +55°C
II 2D Ex t IIIC T60°C Db -40°C à +55°C
Technical characteristics
Unfold Close| Product description : | Ex i IP66 glass breakage |
| Min Operating Temperature | -40 Degree Celsius |
| Max Operating Temperature | 55 Degree Celsius |
| Zones | Zones 0, 1, 2, 21, 22 |
| Cable entries | 3 x M20 |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 4.000 Square Millimeter |
| Width | 95.000 Millimeter |
| Height | 98.000 Millimeter |
| Depth / Thickness | 76.000 Millimeter |
| Weight | 0.8 Kg |
| Housing Material | Marine aluminum LM6 |
| Fixing mounting | Wall mounting |
| Wall mounted | Yes |
